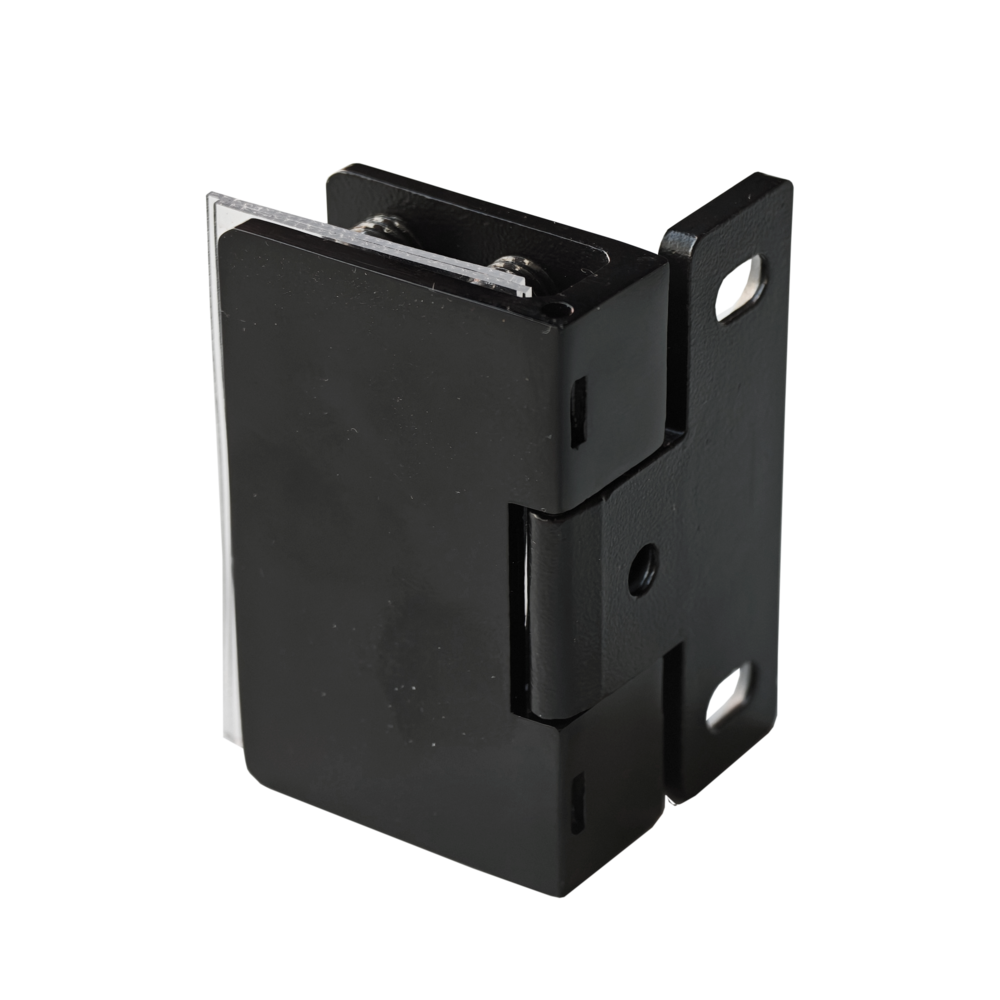

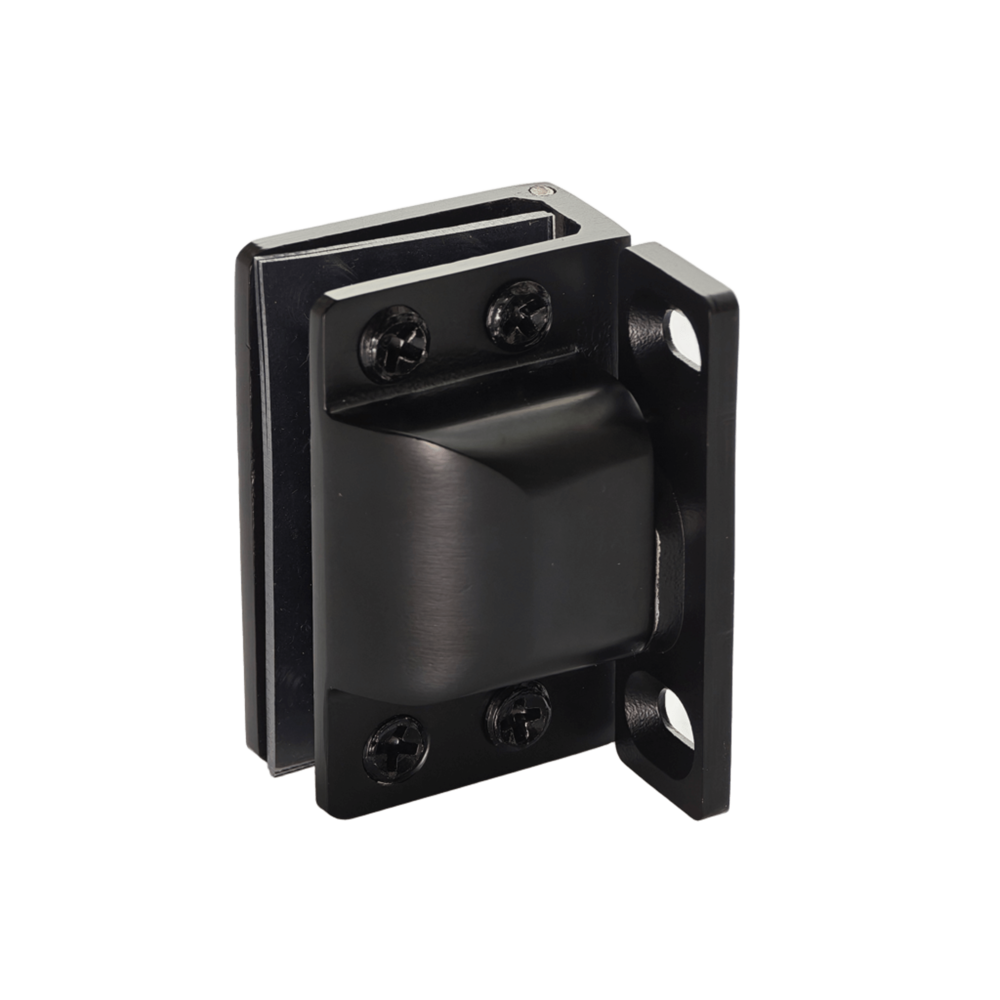

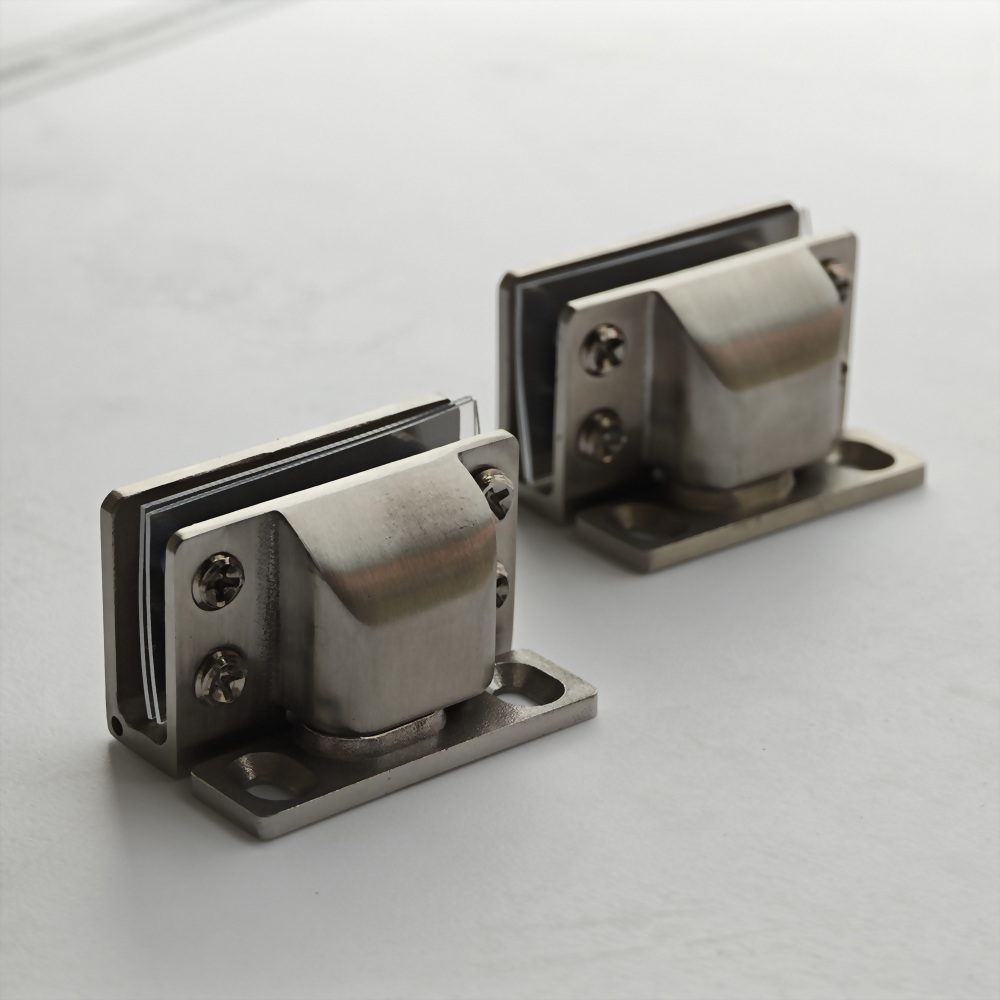

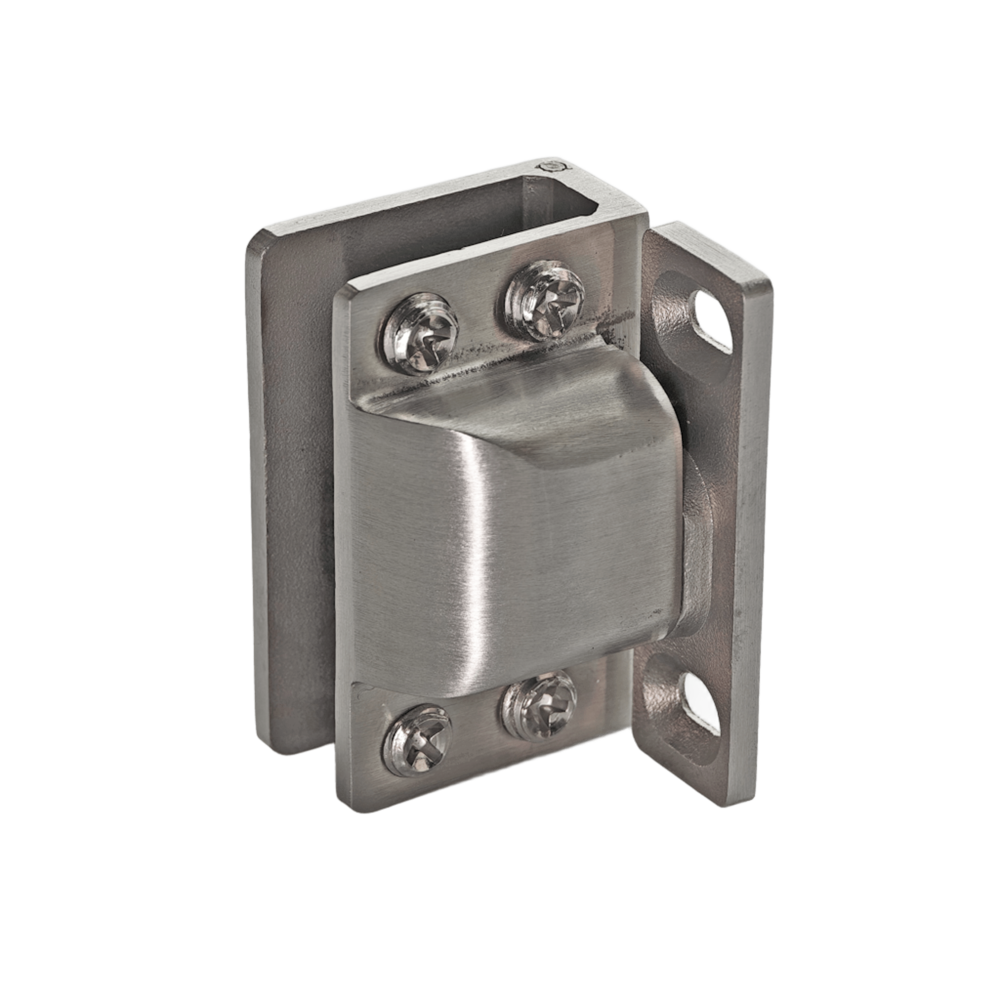

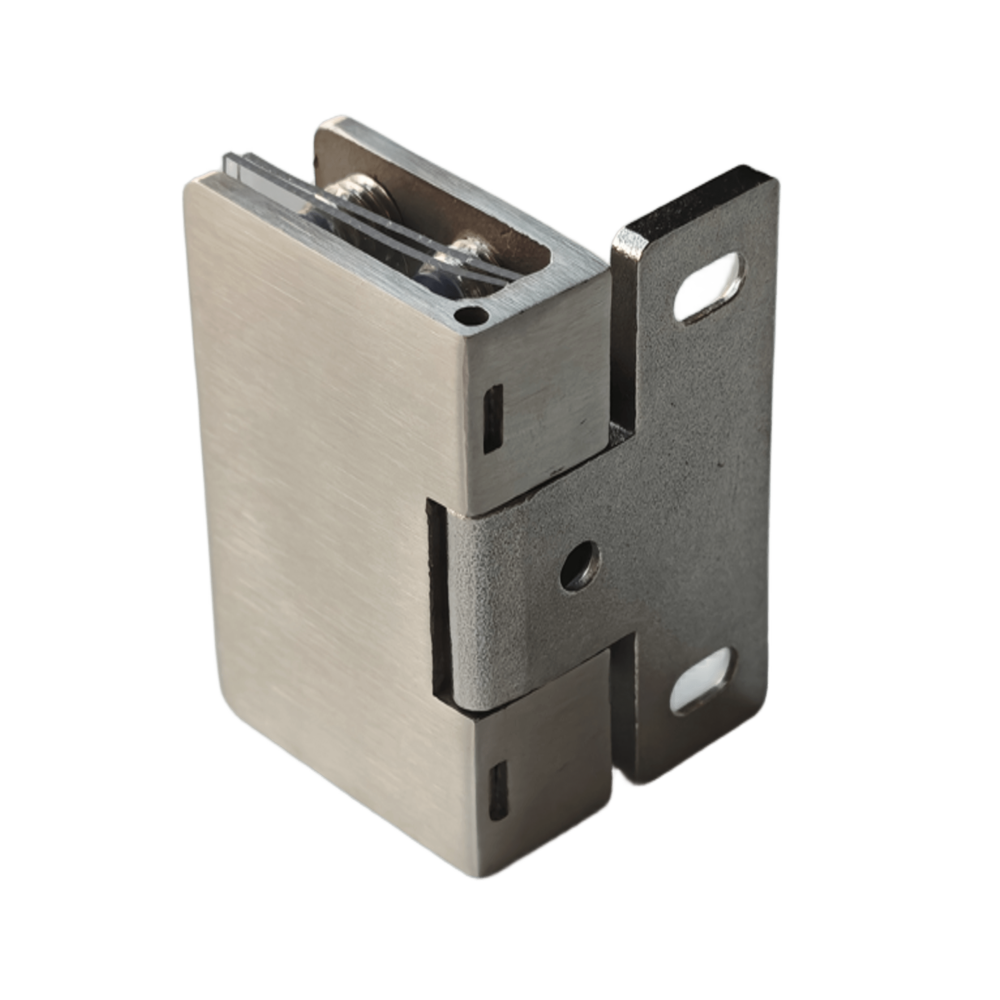

The ARMSTRONG Soft-Close Cabinet Glass Door Hinge combines smooth closing performance with a clean, drill-free installation. Featuring a built-in soft-close damper, it reduces impact and noise while providing controlled door movement.

Made of durable 304 stainless steel, the hinge is designed for 5–8 mm glass and supports an opening angle of 90°–180°. Tested for 50,000 opening and closing cycles, it is ideal for display cabinets, retail showcases, museum displays, and premium furniture applications.

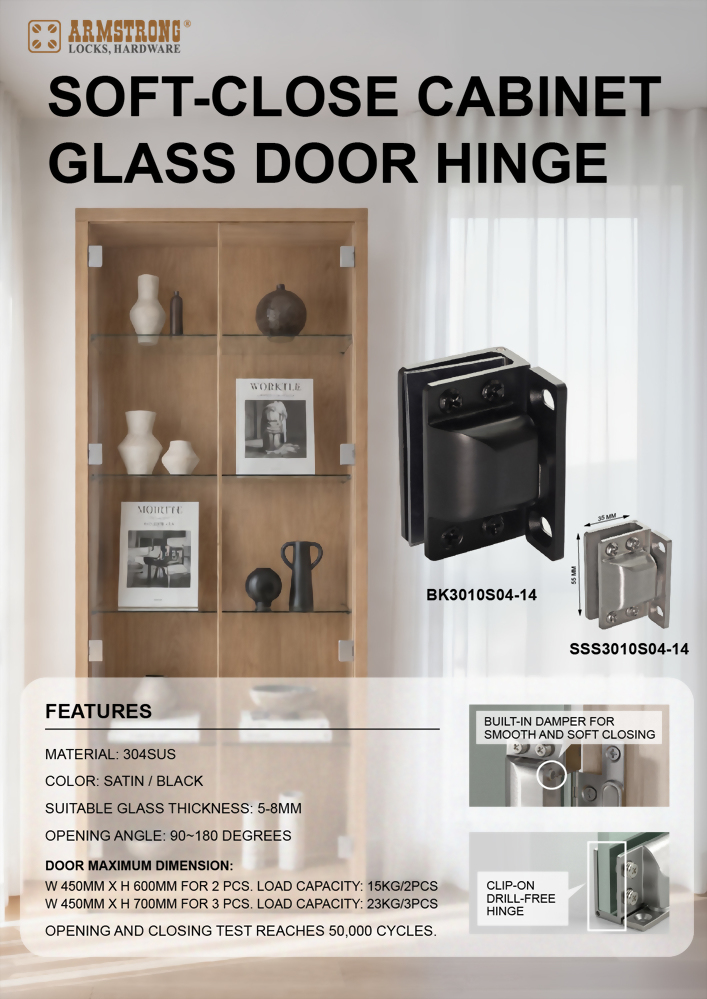

Product: Soft-Close Cabinet Glass Door Hinge
Models: BK3010S04-14 / SSS3010S04-14
Material: 304 Stainless Steel
Finish: Satin Stainless Steel / Black
Suitable Glass Thickness: 5–8 mm
Opening Angle: 90°–180°
Durability Test: 50,000 opening and closing cycles

Door Capacity:

• 450 × 600 mm door: 2 hinges / Max. load 15 kg

• 450 × 700 mm door: 3 hinges / Max. load 23 kg

• Built-In Soft-Close Damper – Provides smooth, quiet, and controlled door closing.
• Drill-Free Glass Installation – Clip-on design eliminates the need to drill holes in the glass.
• 304 Stainless Steel Construction – Durable and corrosion-resistant for reliable long-term performance.
• Wide Opening Angle – Supports an opening range of approximately 90°–180°.
• For 5–8 mm Glass – Designed for common glass cabinet and showcase applications.
• 50,000-Cycle Durability Tested – Engineered for frequent opening and closing in commercial environments.
• Two Finish Options – Available in Satin Stainless Steel and Black

Ideal for glass display cabinets, retail showcases, jewelry showcases, museum display cases, trophy cabinets, premium furniture, and commercial display fixtures.

The combination of soft-close performance, drill-free installation, stainless steel durability, and minimalist design makes it an excellent choice for professional glass cabinet and showcase applications.
